In stock: 7 - 9 days
1,651.15 лв
RRP 3,558.57 лв
Free Shipping

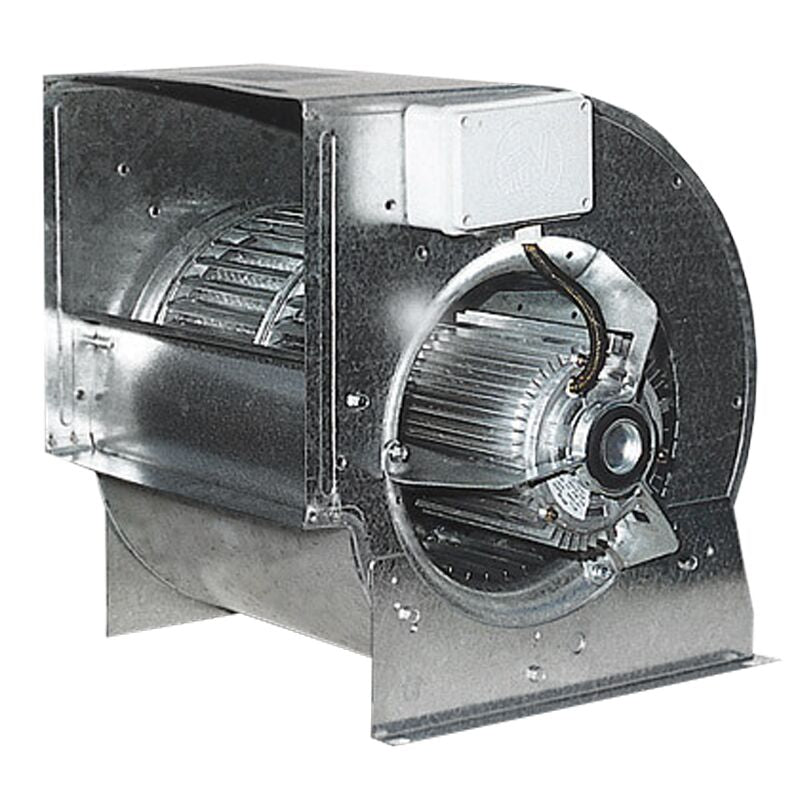

Centrifugal fan 10000 m³ per hour - 900 rpm. - for ventilation boxes
Free Shipping
B545xT577xH626mm
DAIN 15/15 201100E 3F 6P 1V +SB
In stock: 7 - 9 days
Lavprisgaranti*
Free Shipping
*grossprice incl. 20.0% VAT.: 1,981.38 лв, incl.
Forsendelsesomkostninger
Description
Execution
- Built-in motor for air boxes
- TOP Capacity 10000 m³
- Temperature: from -20°C to +40°C
- Low power consumption
- Self-aligning lubricant nozzle
- No speed controller and feet!
- Machine almost maintenance free
- Easy to clean
- Easy installation
Quality
- Centrifugal fan made of galvanized steel
- Galvanized steel impeller

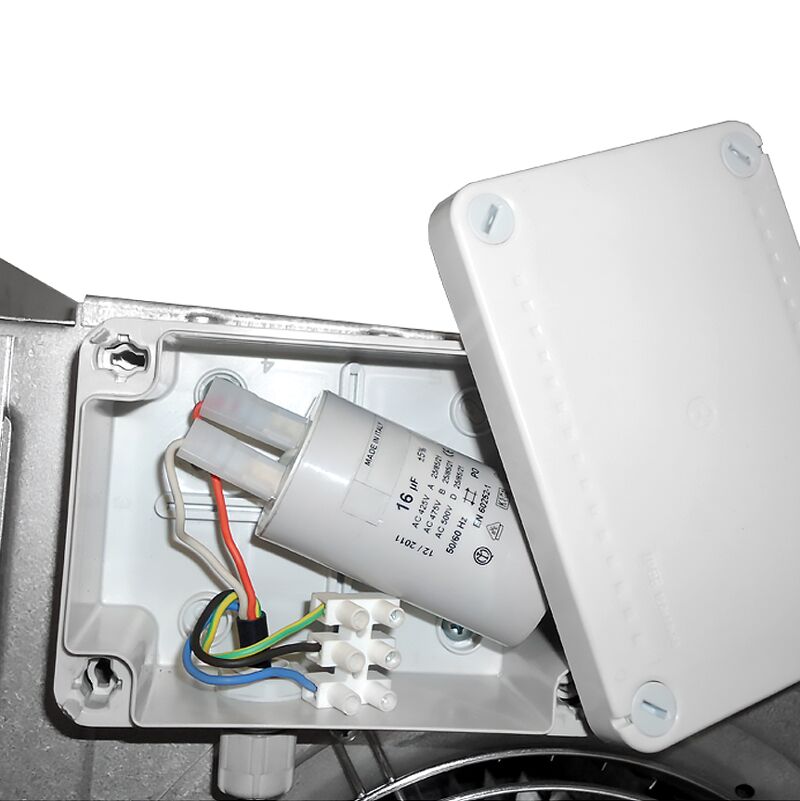

Connection
- Power: 2.2 kW
- Electrical connection: 400 V / 1 L / 50 Hz

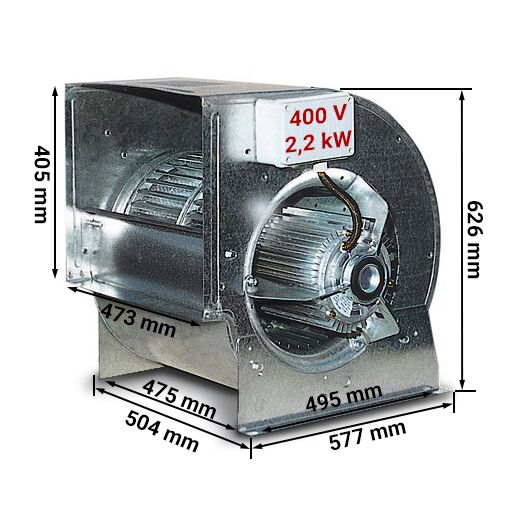

Dimensions
- External dimensions W x L x H: 545 x 577 x 626 mm
Directives
- Conforms to EU 327/2011
- Guidance on ErP 2015
- Following manufactured hygiene and safety guidelines
- The Bylaws CE
- For sample: The material meets the European food standards
Accessories
-
Description
-
Teknisk data
-
Technical Specsheets
Execution
- Built-in motor for air boxes
- TOP Capacity 10000 m³
- Temperature: from -20°C to +40°C
- Low power consumption
- Self-aligning lubricant nozzle
- No speed controller and feet!
- Machine almost maintenance free
- Easy to clean
- Easy installation
Quality
- Centrifugal fan made of galvanized steel
- Galvanized steel impeller
Connection
- Power: 2.2 kW
- Electrical connection: 400 V / 1 L / 50 Hz
Dimensions
- External dimensions W x L x H: 545 x 577 x 626 mm
Directives
- Conforms to EU 327/2011
- Guidance on ErP 2015
- Following manufactured hygiene and safety guidelines
- The Bylaws CE
- For sample: The material meets the European food standards
Dimensions
| Width | 545 mm |
|---|---|
| Depth | 577 mm |
| Height | 626 mm |
Details

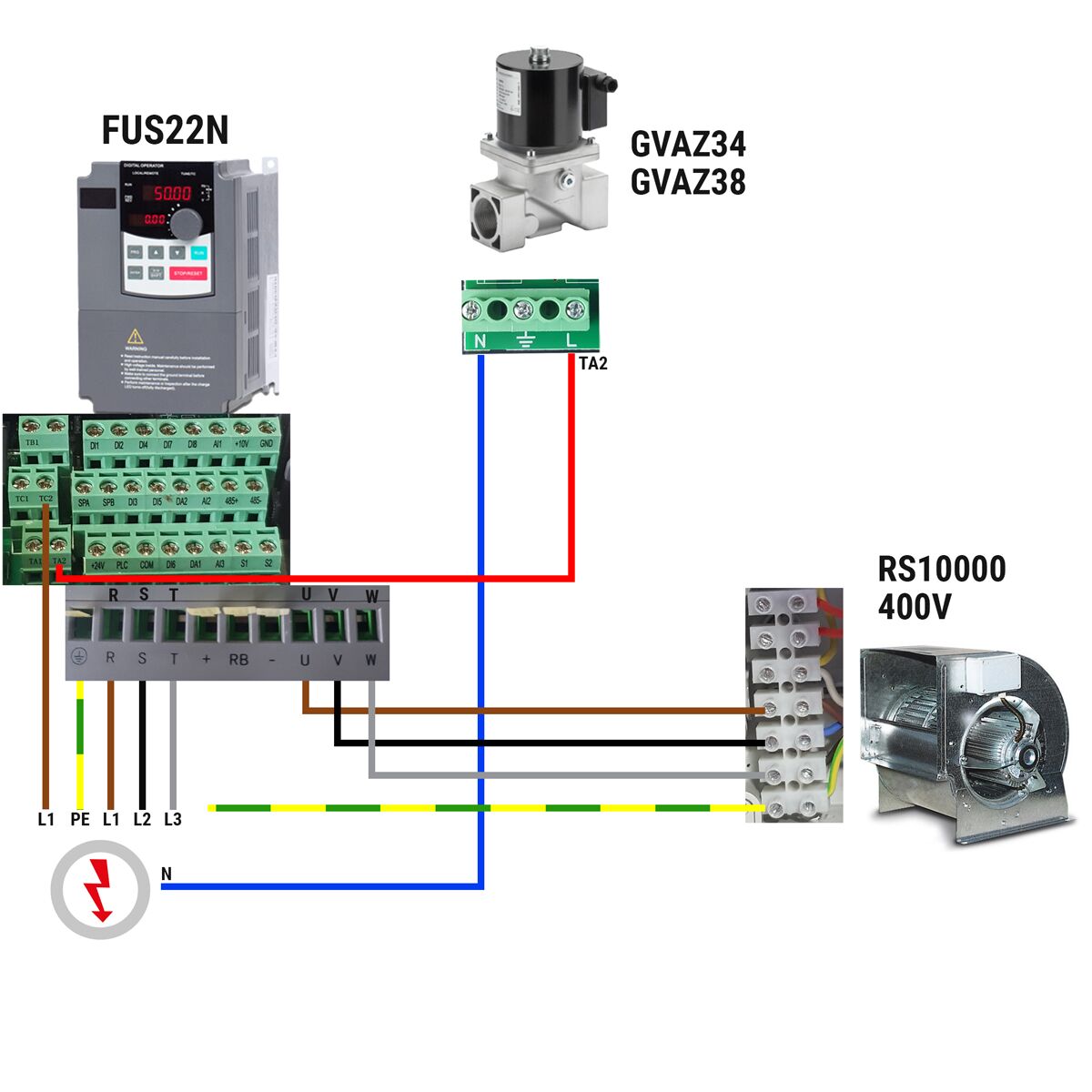

| Speed control | frequency converter |
|---|---|
| Revolutions | 900 U/Min |
| Air exchange per hour | 10000 m³/h |
| Temperature | -20 °C to +40 °C |
Values
| Power | 2.2 kW |
|---|---|
| Tension | 400 volts |
| Frequency | 50 Hz |
| Amperage | 7.2 amps |
| Phases | 3 |
Delivery
| Fast delivery | |
| Delivery condition | mounted |
|---|---|
| Weight | 30 kg |
Dimensions
| Width | 545 mm |
|---|---|
| Depth | 577 mm |
| Height | 626 mm |
Details
| Speed control | frequency converter |
|---|---|
| Revolutions | 900 U/Min |
| Air exchange per hour | 10000 m³/h |
| Temperature | -20 °C to +40 °C |
Values
| Power | 2.2 kW |
|---|---|
| Tension | 400 volts |
| Frequency | 50 Hz |
| Amperage | 7.2 amps |
| Phases | 3 |
Delivery
| Fast delivery | |
| Delivery condition | mounted |
|---|---|
| Weight | 30 kg |
