Split refrigeration unit Minus / for max. 10.6 m³

Execution

• Type of protection IP 23
• With lighting
• Condensate drainage
• Condensate connection drain
• Electronic control
• Externally
• With heating
• Pre-charged refrigerant connection

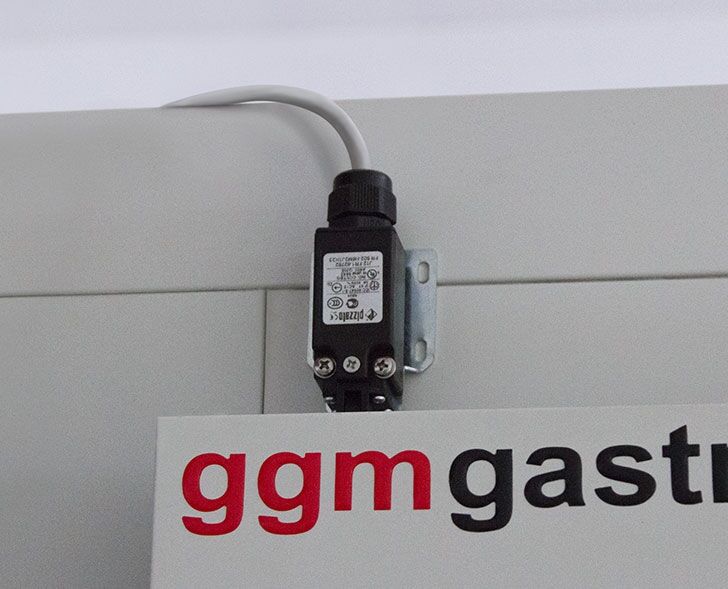

• Door contact switch - high pressure relay and remote control
• Self-supporting housing (galvanized powder coated sheet)
• Hermetic compressor with thermal protection of the coils
• Heat exchanger with copper pipes and aluminum fins
• Particularly hygienic through easy cleaning

Quality

• Long life
• High quality split module
• Dimensional stability
• Compact cooler as a separate unit
• Quality product, made in Europe

Isolation

• Compliant with EU (halon guidelines) regulations
• Due to the high-quality insulation, particularly energy-saving
• First class insulating values ​​in polyurethane

Cooling

• With refrigerant
• Temperature: -15 °C to -25 °C
• Maximum room volume: 11.5 m³
• Refrigerant: R452a / 1930
• Air-cooled condensers
• Ambient temperature up to +43 °C
• Strong and constant cooling
• Automatic defrost on a programmable controller

Connection

• Compressor power: 1067 W
• Electrical connection: 230 V / 50 Hz

Dimensions

• External unit dimensions W x L x H: 650 x 390 x 840 mm
• Evaporator external dimensions W x D x H: 944 x 402 x 350 mm

Scope of delivery

• Including ignition key
• Including interior lighting for the refrigerator compartment
• Unit and vaporizer
• 5 {} ME pipeline
• Refrigerated
• Delivery without refrigeration

Directions

• The refrigerator must be ordered separately
• Winter equipment for operation in outdoor conditions can be purchased for an additional fee

Directives

• Following manufactured hygiene and safety guidelines
• The statutory CE ISO 9001 (International TUV certificate)
• For sample: The material meets the European food standards

Optional accessories:

• Refrigeration chamber TC-series
