Dishwasher for trays - 3.5 kW

Execution

• Simple and intuitive control panel for practical and quick commissioning

• High redness

• Adjusting the intensity of washing by means of a rotary regulator

• Integrated water heating system

• With tap for draining waste water

• with emergency switch

• Surge protection

Quality

• High quality stainless steel body

• Stainless steel legs

• The water tray at the tray outlet prevents dripping water from running onto the floor

• The internal scrub brushes can be easily removed for cleaning and reinserted.

• Watertightness is guaranteed by a sealed lid structure

Washing process

• The machine starts working after the tray is inserted into the machine and waits for the second tray to be inserted after the tray is removed.

• Because the inlet and outlet of the bowl are angled, the water that remains in the bowl is returned to the machine.

Connection

• Power: 3.50 kW

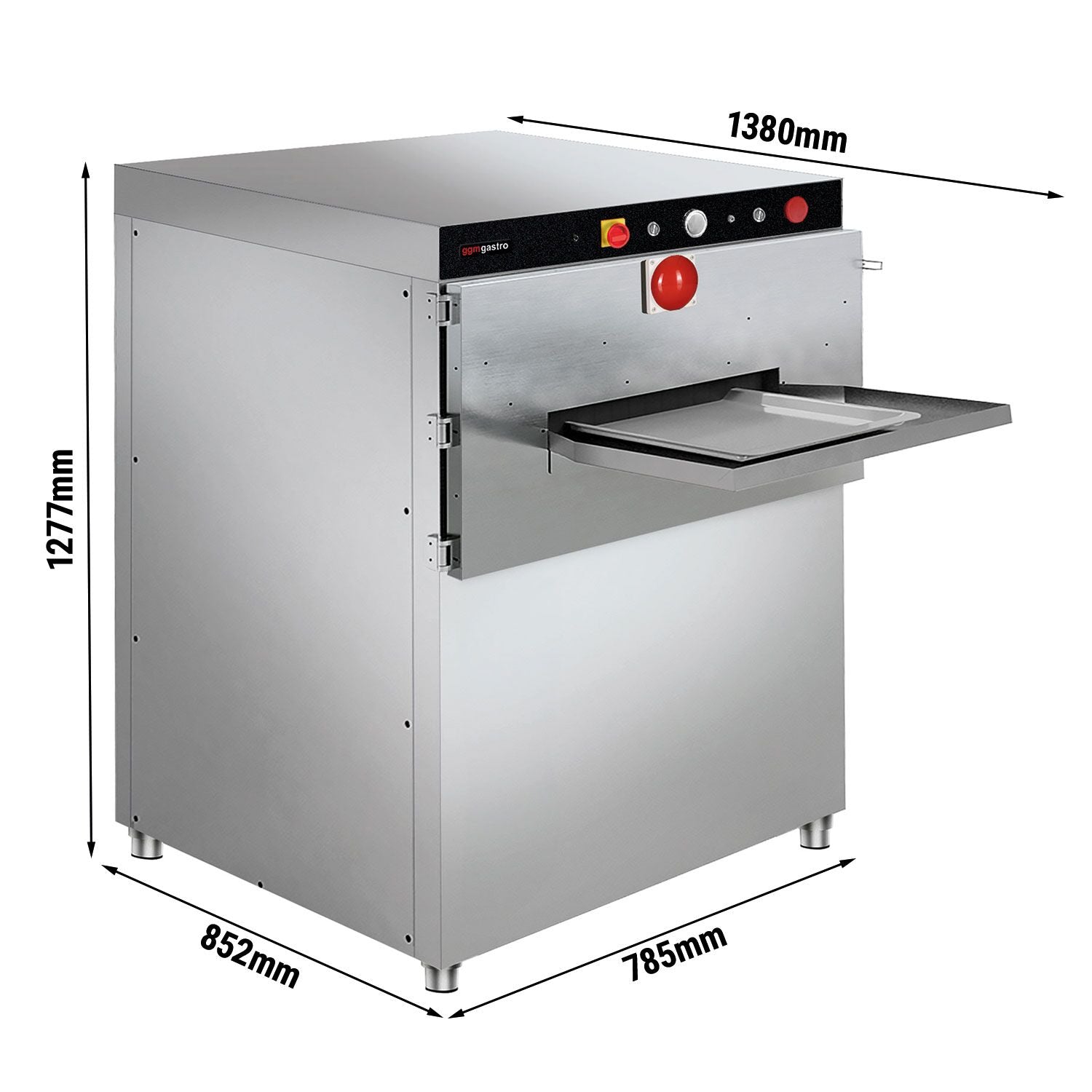

Dimensions

• W x L x W: 790 mm x 1,390 mm x 1,270 mm

Scope of delivery

• Power cable without plug as the contacts are country specific!

• 1 Water supply hose

• 1 Water drain hose

Directives

• After produced hygiene and safety guidelines

• The Bylaws CE

• For sample: The material meets the European food standards

Directions

• When the unit is installed and put into operation for the first time, the water heating system is not activated until the automatic water start is finished.

• For trouble-free washing, we recommend regular removal of limescale from the appliance and its components!

• If you have included a descaling device, keep in mind that the cartridge must be cleaned after about 1500-2000 liters of water flow must be regenerated. Actual maximum flow rate depends on water hardness.
